Heavy-Duty AGV Transporters

High-speed Outdoor Heavy-Duty GPS AGV

Your browser does not support the video tag. Product In […]

Model
AGV-GPS
Rated Capacity
Custom 5–600t
Power / Drive
Lithium battery
Travel Speed
0~85m/min
Capacity, deck size, power supply, steering, controls and safety systems can be configured for the actual application.
Technical Overview

Key Specifications

ModelAGV-GPS
Rated CapacityCustom 5–600t
Power / DriveLithium battery
Travel Speed0~85m/min
Product Description

Features, Configuration & Applications

Product Introduction

The BECHUR laser/GPS navigation outdoor heavy-duty high-speed AGV is an unmanned outdoor transport platform specially designed for high-frequency material transfer within industrial facilities.

It can easily handle narrow factory roads, short slopes and complex transportation conditions, completing repeated cross-workshop transportation without manual supervision.

Combining high transportation efficiency, flexible route planning and precise stopping, it provides an efficient and reliable intelligent material handling solution for upgrading factory logistics automation.

Outdoor unmanned heavy-duty transportation
High-speed operation up to 85 m/min
Multi-mode navigation for flexible routing
Precise stopping for cross-workshop transportation

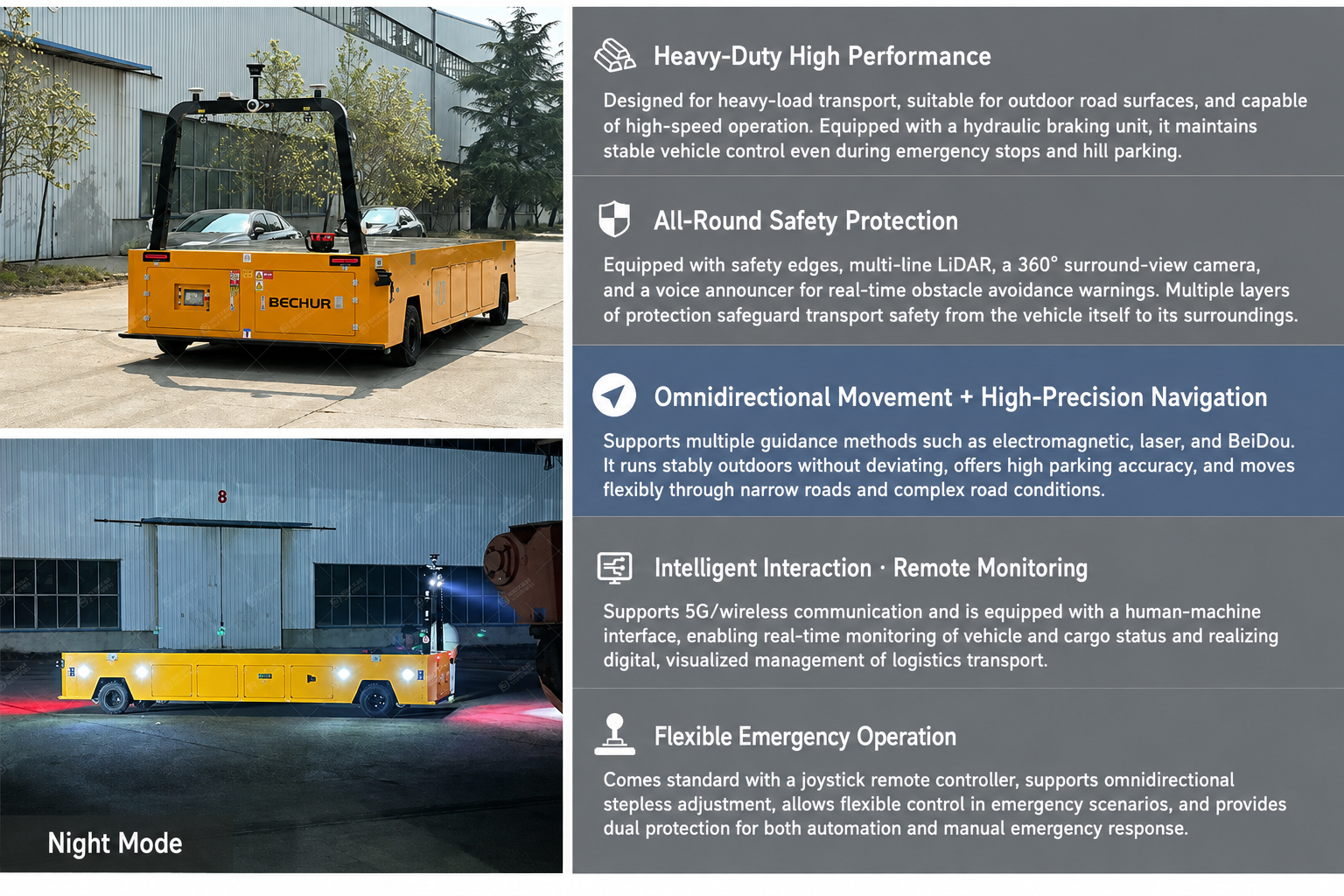

Product Features

Product Features

BECHUR Laser GPS Navigation Outdoor Heavy-Duty High-Speed AGV Product Features
Product Parameters

Technical Specifications

Load Capacity
10T (customizable from 5–600T)
Platform Size (mm)
Customized according to application requirements
Application Scenario
Outdoor short-distance cross-workshop transportation within industrial facilities
Power Supply
High-capacity lithium battery
Operating Speed
0–85 m/min, adjustable
Travel Modes
Forward / reverse / left turn / right turn / on-the-spot rotation / diagonal travel / lateral travel / omnidirectional travel
Navigation Method
Laser / BeiDou / inertial / magnetic strip and other navigation methods available
Drive System
Outdoor differential drive with pressure-loss protection hydraulic disc drive
Safety Configuration
LiDAR + safety edge + 360° camera + voice alarm
Operating Endurance
High-density, high-capacity lithium battery with automatic charging support
Status Display
LCD display + indicator lights; displays current operating status and fault information
Additional Functions
Sequential turn signals, LED auxiliary lighting and three-color emergency stop light
Vehicle Color
Customized according to customer requirements
Customization
Configuration can be customized according to project requirements
This product can be customized according to actual project requirements. Load capacity, platform dimensions, navigation method, drive system, safety configuration and additional functions can be configured according to the customer’s operating conditions.
Customer Case

Customer Case Video

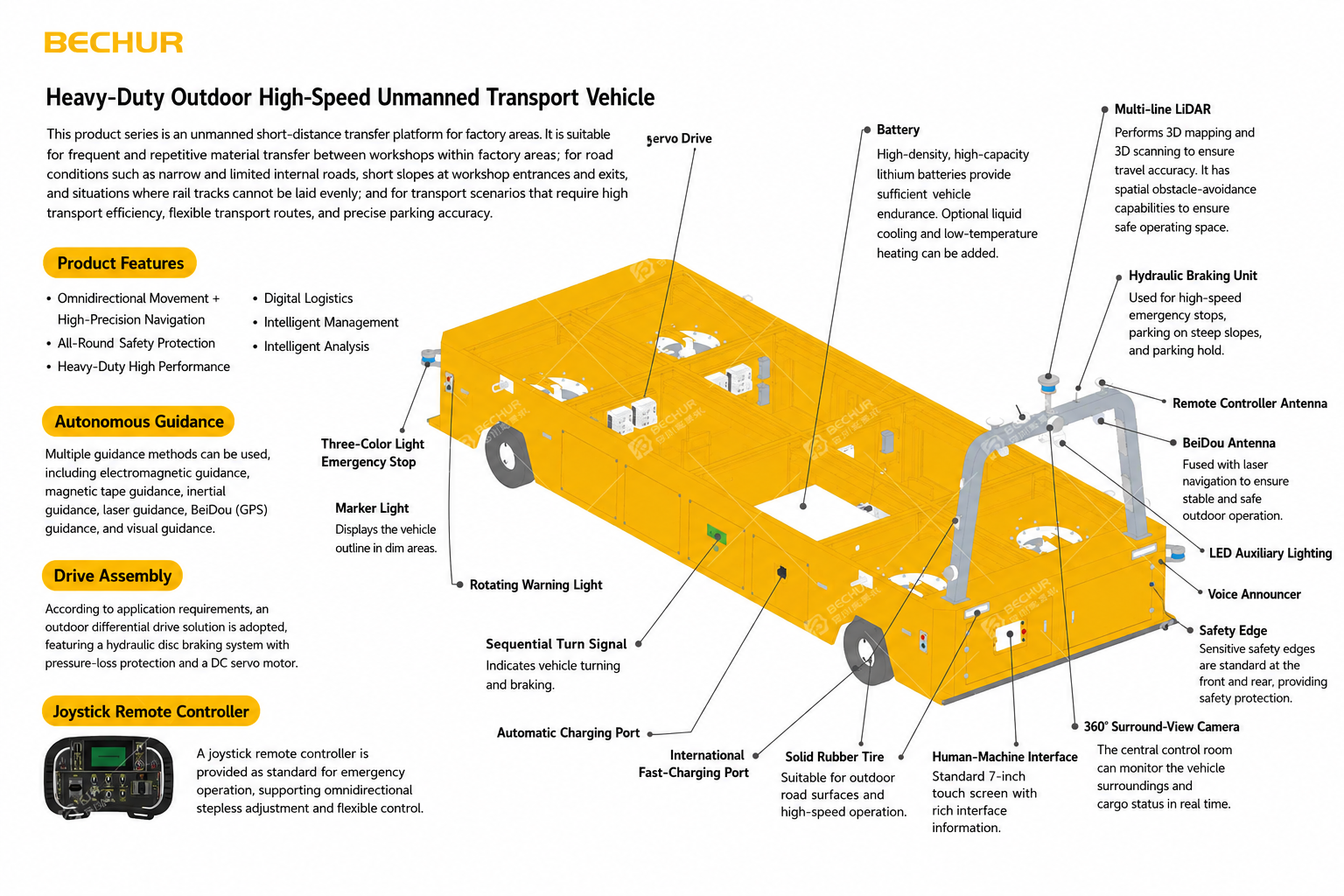

Product Details

Product Structure and Component Details

BECHUR Outdoor Heavy-Duty High-Speed AGV Product Details
Application Scenarios

Application Scenarios

BECHUR Outdoor Heavy-Duty High-Speed AGV Application Scenarios
BECHUR Industrial Material Handling Equipment Manufacturer
About BECHUR

Professional Industrial Material Handling Equipment Manufacturer

BECHUR is a professional manufacturer specializing in electric transfer carts and intelligent material handling equipment, with more than ten years of industry experience and multiple patent certificates.

Our products feature high load capacity, long operating endurance, convenient operation and easy maintenance, and are widely used in heavy manufacturing, steel plants, warehousing, logistics and other industrial fields.

BECHUR provides a wide range of material handling equipment, including standard rail transfer carts, European-style transfer carts, customized non-standard transfer carts, trackless electric transfer carts, lifting transfer carts, explosion-proof transfer carts, ladle and coil transfer carts, as well as AGV material handling vehicles.

Customized design and manufacturing services are available. Load capacity, vehicle dimensions, travel mode, navigation system, power supply, safety configuration and other specifications can be designed according to each customer’s actual operating requirements.

Buyer Questions

Frequently Asked Questions

What information is needed for an accurate quotation?

Provide the load weight and dimensions, required deck size, travel route, duty cycle, floor or rail condition, working environment and preferred control method.

Can this product be customized?

Yes. Capacity, deck structure, power supply, steering, controls and safety devices can be engineered around the confirmed application.

What documentation is supplied?

Documentation can include operating instructions, electrical information, maintenance guidance and agreed project drawings. Confirm the required document package during quotation.
